DP-24SD

The DP-24SD Digital Portastudio is a 24-track workstation, allowing eight tracks of simultaneous recording. The built-in mixer includes everything you need for a professional-sounding mix, from EQ and reverb to amp simulation and multi-band mastering effects. The Digital Portastudio series creates finished productions without the need for a computer, instead using a simple-to-use control surface to keep you creative.

Features include:
• Stress-free user interface for easy recording
• Simultaneous 24-track playback
• 12 mono tracks + 6 stereo tracks
• Simultaneous 8-track recording
• 44.1k or 48k Hz, 16 or 24-bit recording

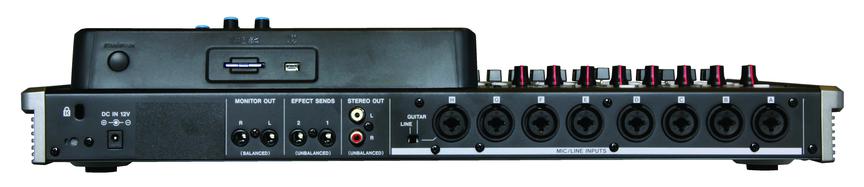

• 8 XLR/TRS combo connectors
• Phantom power supplied on all inputs (INPUT A-D, E-H)
• High-impedance input available (INPUT H)
• Stereo RCA output
• Stereo RCA output
• 2 effect send outputs (1/4″ TS jack)
• 70 mW/ch headphone amplifier
• Remote connector for optional RC-3F foot switch
• INPUT A-H and each track equipped with 3-band EQ
• Automatic punch in/out
• Various edit functions
• Undo and Redo function with Undo history
• Dynamics effects for input (Limiter, Compressor, Noise Suppressor, Exciter)
• Guitar effects (Amp Simulator, Reverb, Compressor, Chorus, Flanger, Phaser)
• Mix-down effects (Multi-band Compressor, Equalizer, Dither, Normalize)
• Track bounce function
• Virtual track
• Locate mark up to 99 for one song
• File transferring via USB 2.0
• Chromatic tuner
• Metronome
• 19 Faders
• Peak-hold function on the level meter of the LCD
• Sub-frame editing
• Dedicated AC adapter included (TASCAM GPE248-120200-Z)
• SD card included
• RoHS certified
